TopTeam Application Server must be running in order to access the TopTeam repository. This article describes the procedure on how to determine whether TopTeam Application Server and its utility services are running.

Assumption: TopTeam Application Server is installed as a Windows Service.

You can determine whether TopTeam Application Server is running from any of the following options:

1. Option 1 – Using Management Console for TopTeam Application Server
2. Option 2 – Using Windows’ Task Manager

When TopTeam Application Server starts, it also starts the following supporting services:

1. Advanced Notification Service
2. Clear Temporary Data Service
3. Email Receiver Service
4. Email Sender Service
5. Reuse Record Service
6. Text indexing Service
7. Virtual Field Indexing Service

These services are started only if the option to start these supporting services when TopTeam Application Server starts is turned ON in the Management Console. You can find the option for each supporting service on the Management Console.
The running status of these supporting services of TopTeam Application Server can only be determined using Windows Task Manager.

• TopTeam Administrators
• System Administrators
• IT Support

TopTeam Application Server must be installed as a Windows Service. To identify that the TopTeam Application Server is installed as a Windows Service, refer to the article Determining whether TopTeam Application Server installed as a Windows Application or as Windows Service.
For information on installing TopTeam Application Server as a Windows Service, refer to the article Installing TopTeam Application Server as a Windows Service.

Log on to the computer on which TopTeam Application Server is installed as a Windows User that has Windows Administrator permissions.
Windows Administrator permissions are required to start the Management Console and to view the list of Windows Services currently running using the Task Manager.

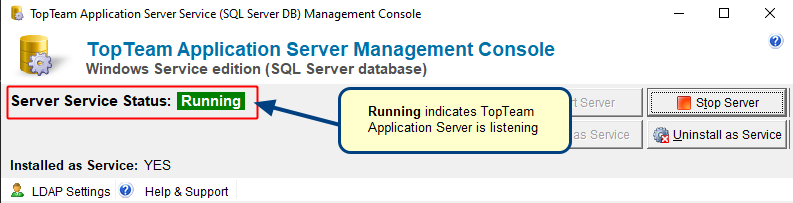

Using this option, you can only determine the status of TopTeam Application Server.
To determine the status of TopTeam Application Server supporting services, refer to the Option 2.

For more information, refer to the article How to run Management Console for TopTeam Application Server.

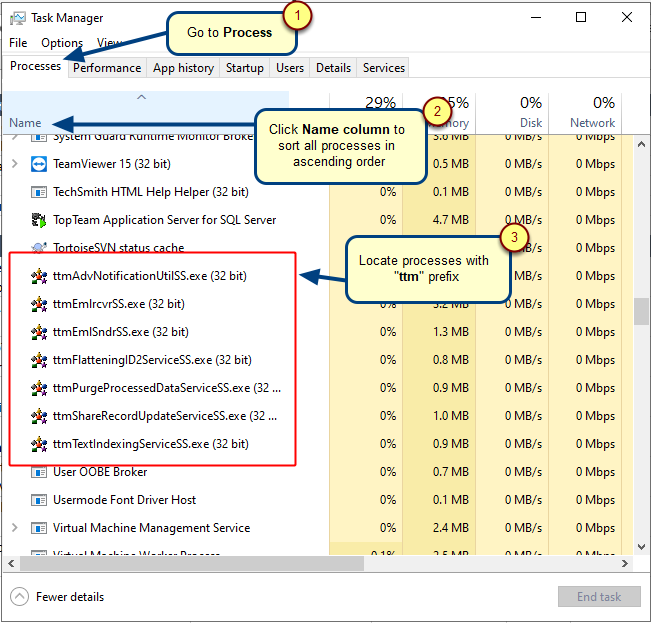

Using this option, you can determine the status of TopTeam Application Server and as well as its supporting services.

The process names of TopTeam Application Server and its supporting services.

Following are the Image Names of the processes for TopTeam Application Server for SQL Server.

TopTeam Application Server – ttmSQLSrv.exe

NOTE: It is normal to see two images of TopTeam Application Server in Windows Task Manager as long as they show the same User Name in the User Name column.

Name of Supporting Services:

• Email Sender Service – ttmEmlSndrSS.exe
• Email Receiver Service – ttmEmlRcvrSS.exe
• Text Indexing Service – ttmTextIndexingServiceSS.exe
• Advanced Notification Service – ttmAdvNotificationUtilsSS.exe

If you are not able to see some of the supporting services, verify that option to automatically start these services on start up of the Application Server, is turned ON on the Management Console.
Changes in these option will need the Application Server to be restarted, for them to take affect.

Revised: July 21st, 2022
