How to enable LDAP Authentication

Application Server

Overview

This article describes the procedure to enable LDAP authentication on the Web Server so that it can authenticate User Accounts by connecting to the specified Active Directory.

Who should read this?

  • TopTeam Administrators

Prerequisites

  • You should have rights to Web Server Management Console.
  • You should know the LDAP port number and the name of the server.
  • You should know the LDAP login credentials.

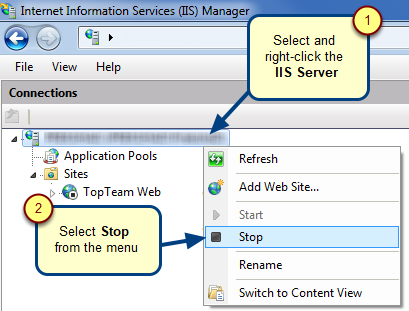

Step 1. Stop Internet Information Services (IIS) server




Step 2. Start TopTeam Web Server Management Console


Navigate to the TopTeam Web installation files and folders to locate ttmISAPICp_SQL.exe.

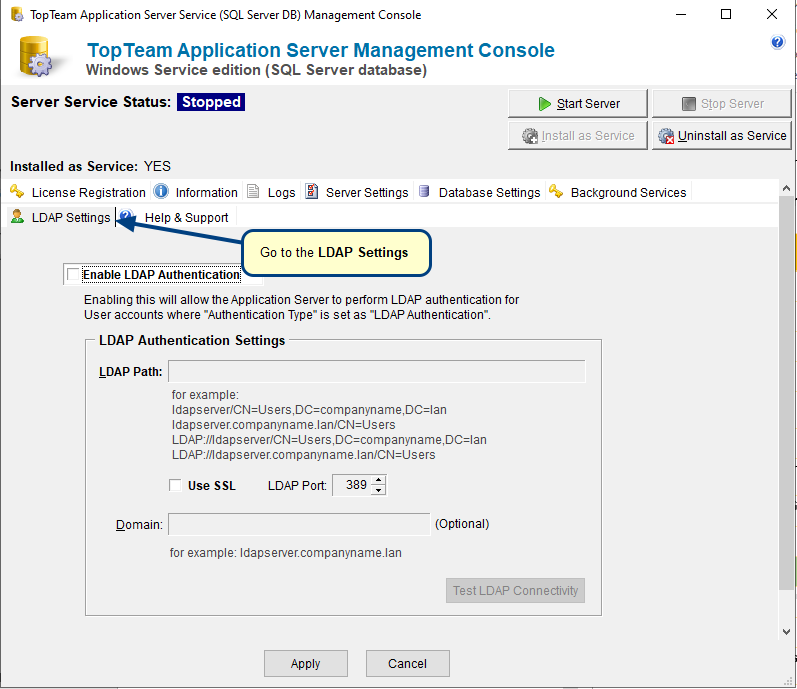

Step 3. Go to the LDAP Settings tab in Management Console

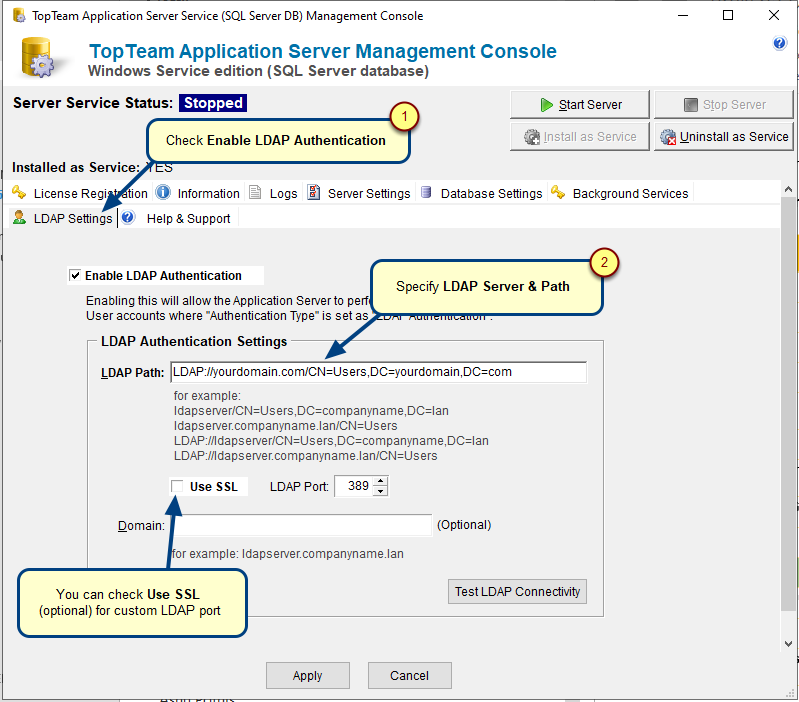

Step 4. Enable and configure LDAP Authentication Settings

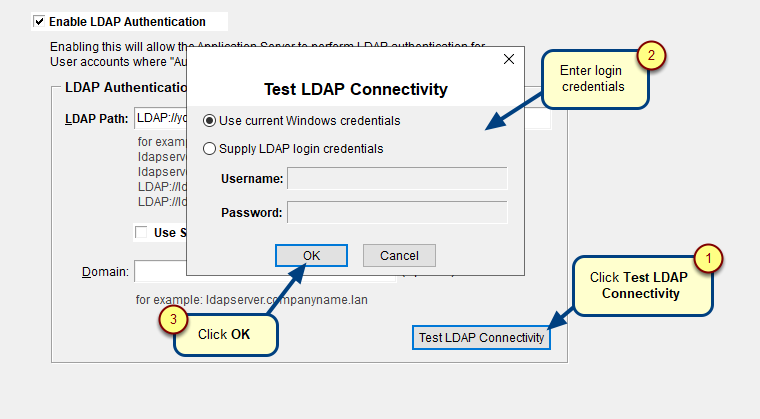

Step 5. Test LDAP Connectivity

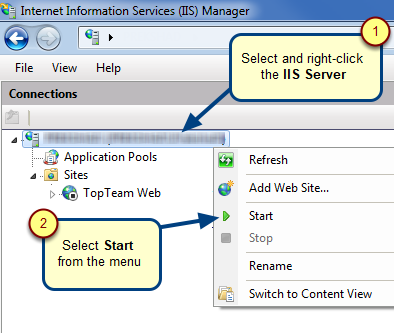

Step 6. Start IIS Server


You have completed the first step of enabling TopTeam for LDAP authentication on Web Server.

See Also

You need to perform the following steps to fully configure LDAP authentication:
Configuring LDAP authentication for TopTeam Application Server using Management Console
How to import users from LDAP server into TopTeam
How to synchronize existing LDAP Users with TopTeam
