Installation of Azure DevOps Connector for Server-side TopTeam Azure DevOps Connector On-Premise

You can use server-side TopTeam Azure DevOps Connector to synchronize data between TopTeam and Azure DevOps as per the schedule set by the Project Administrators in TopTeam Web.

In this article, you will learn how to configure server-side TopTeam Azure DevOps Connector to run it on an On-Premise or Cloud installation server.

Who should read this

System Administrators
Project Administrators

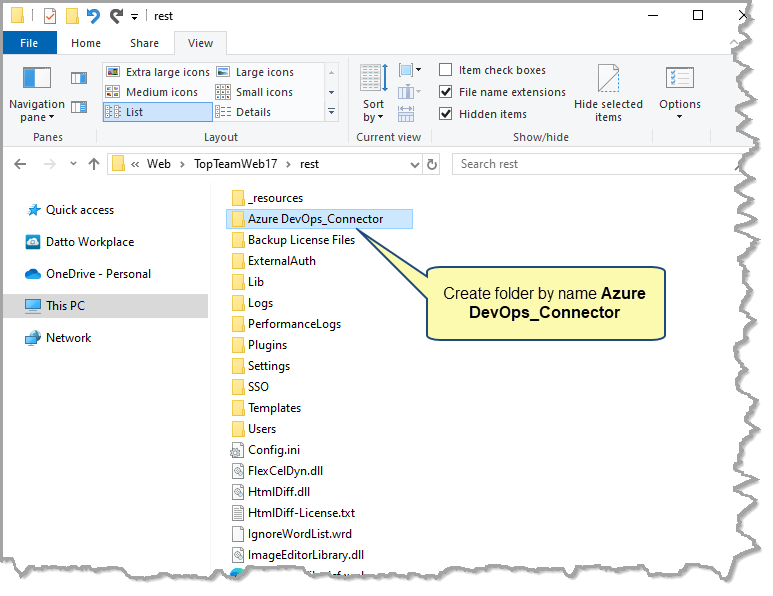

Step 1. Create a folder ‘Azure DevOps_Connector’ in the rest folder of TopTeam Web installation folder

$C:\Users\admin\AppData\Local\Temp\SNAGHTML2ebb9f.PNG$

For information about locating the rest folder, see How to locate installation folder of TopTeam Web Server.

Step 2. Extract the TopTeam Azure DevOps Connector zip file and paste all the extracted files into the Azure DevOps_Connector folder

The zip file of the TopTeam Azure DevOps Connector will be provided to you by TechnoSolutions Support.

$C:\Users\admin\AppData\Local\Temp\SNAGHTML16fbacb.PNG$

NOTE

The folder’s name must be Azure DevOps _Connector, as shown in the image in Step 1.

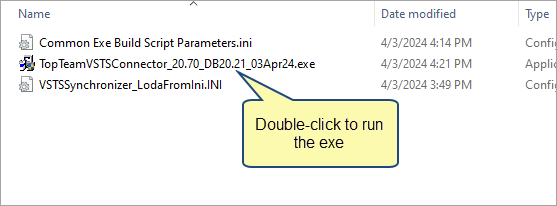

Step 3. Run the exe

You must run it in interactive mode for the first time to accept the license. Note that this is a one-time step.

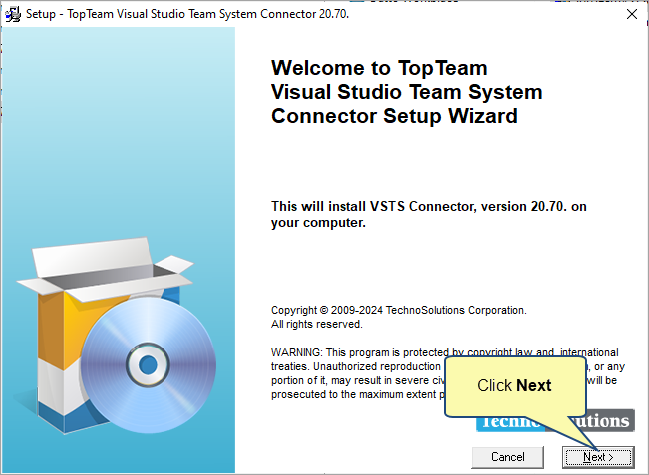

Step 4. TopTeam Azure DevOps Connector Setup Wizard starts

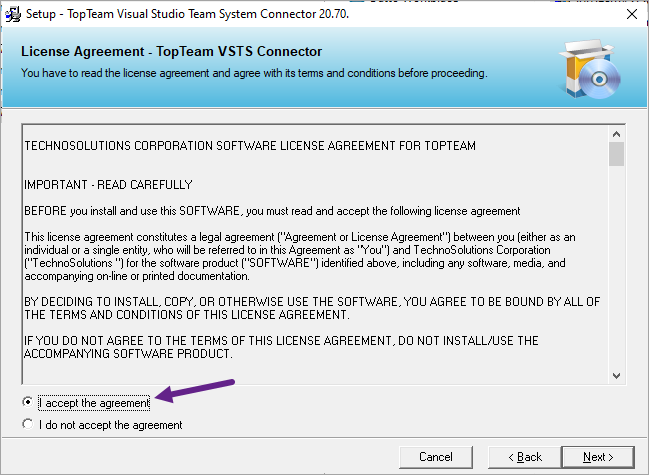

Step 5. Accept the License Agreement – TopTeam Azure DevOps Connector

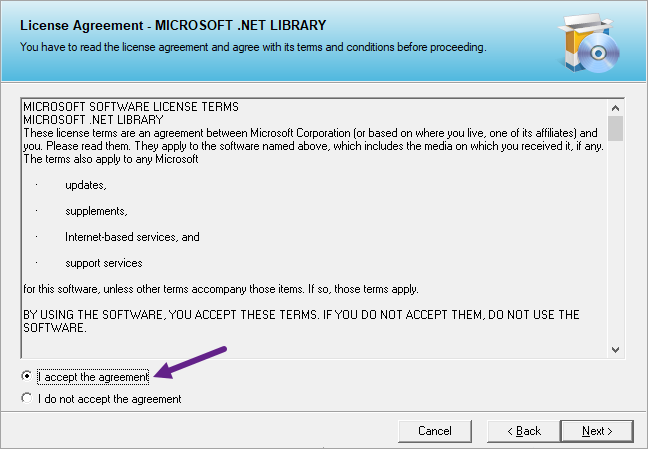

Step 6. Accept the MICROSOFT .NET LIBRARY

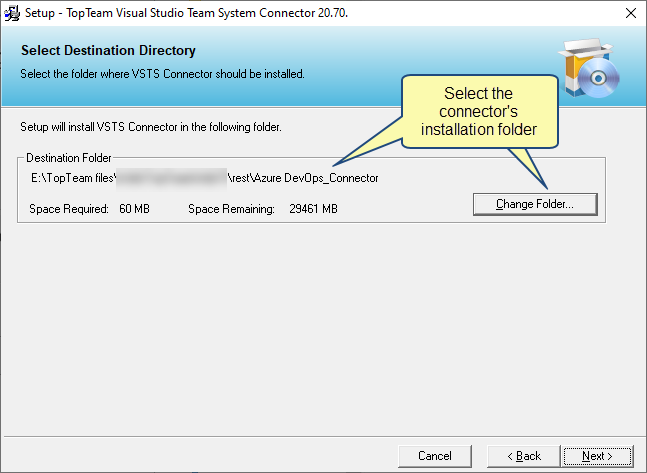

Step 7. Select Destination Folder

Select the path of the folder ‘Azure DevOps_Connector’ created in the ‘rest’ folder (step 1) as the destination or installation folder.

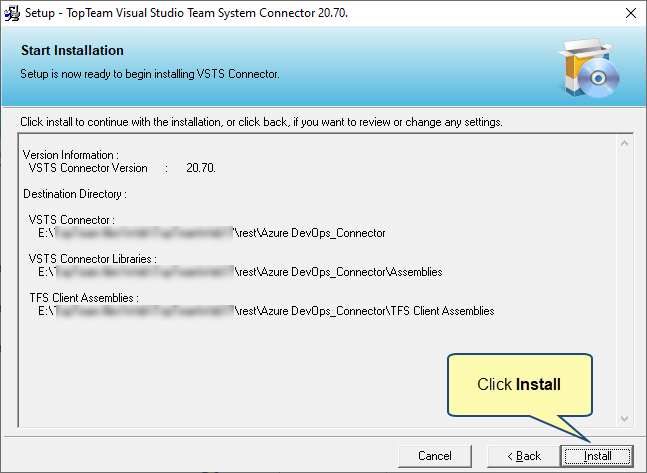

Step 8. Install the Connector

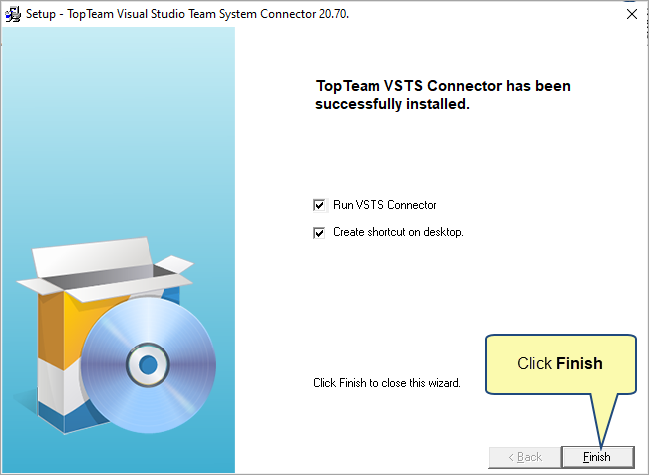

Step 9. Click Finish

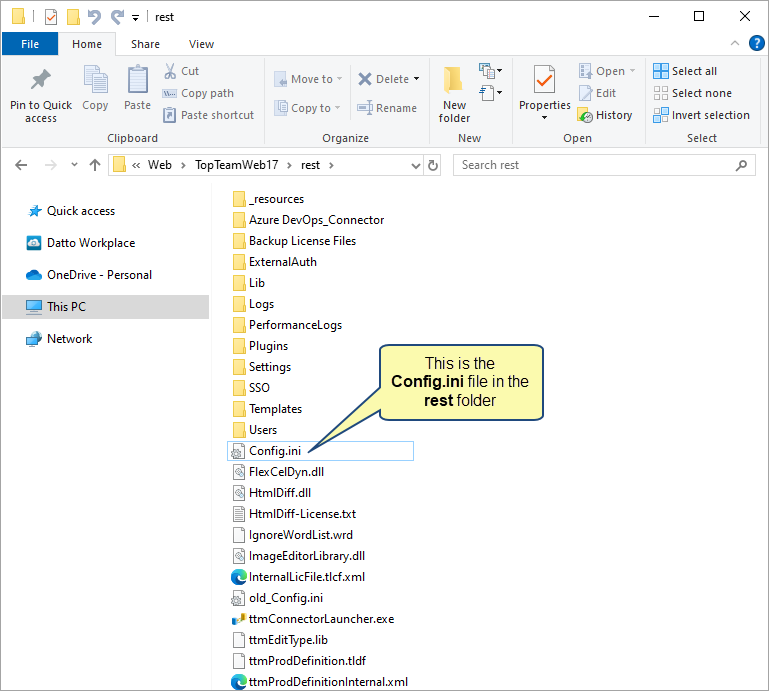

Step 10. Verify if the Config.ini file in the rest folder of the TopTeam Web installation folder contains the required section on the computer where TopTeam Web Server is installed

You can find the Config.ini file in the rest folder of the TopTeam Web installation folder.

If the section is not available, add it to the Config.ini file and add the details based on your system:

[RegisteredConnectors]

TFS=Enable

[ConnectorPaths]

TFS=E:\**********\rest\Azure DevOps_Connector

[AppServerConnectionSettings]

ServerAddress=127.0.0.1

ServerPort=7100

WebServerAddress=localhost

WebServerPort=80

UseSSL=1

IsapiDllPath=topteamhttp/topteamhttp.dll

CompressionType=1

Step 11. Install the Connector Launcher (if not already done) for server-side TopTeam Connectors

For more about installing Connector Launcher for server-side TopTeam Connectors, click here.
