Overview

TopTeam’s out-of-the-box installation comes with some pre-defined fields for each record type. However, defining a new field for tracking additional attributes/properties may be necessary when working on a project. You can define additional custom fields for any record type according to your needs.

This article explains the procedure of creating a new field type.

Prerequisites

You must have TopTeam Administrator permissions to define custom fields for a record type.

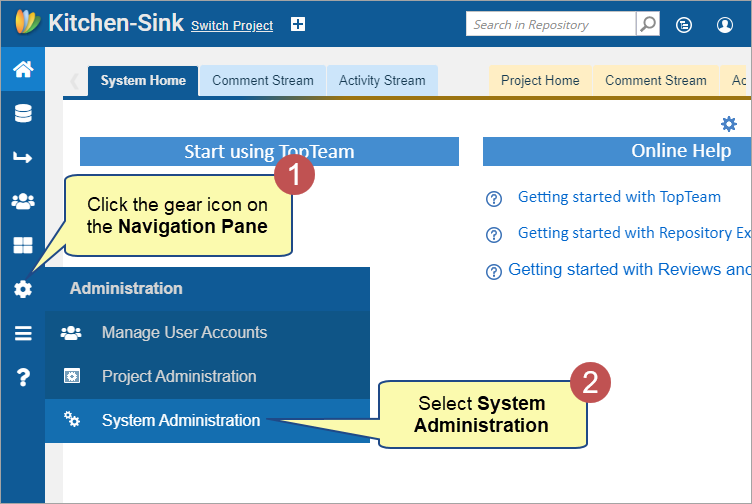

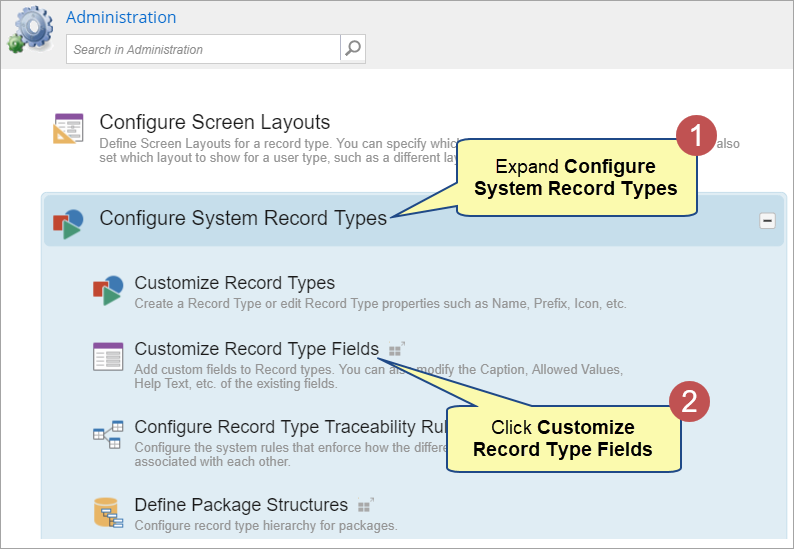

Step 1. Go to the System Administration

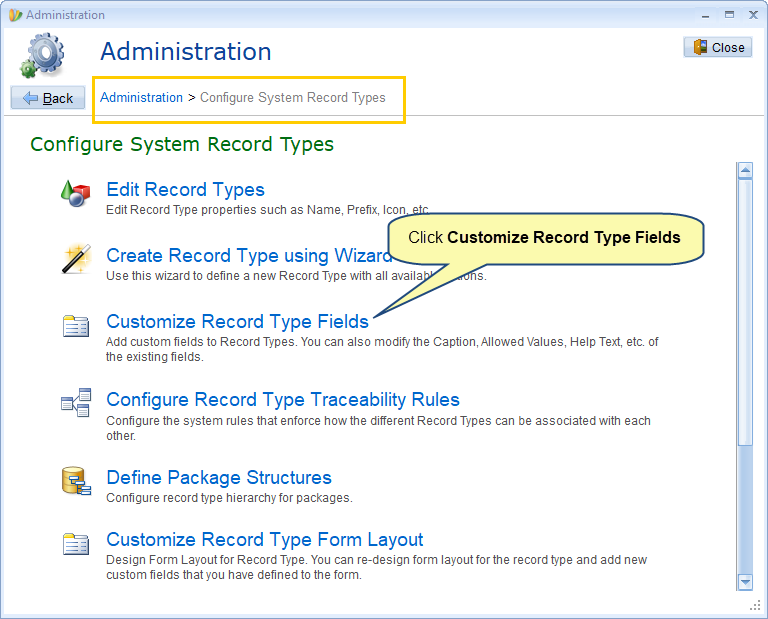

Step 2. Click Customize Record Type Fields

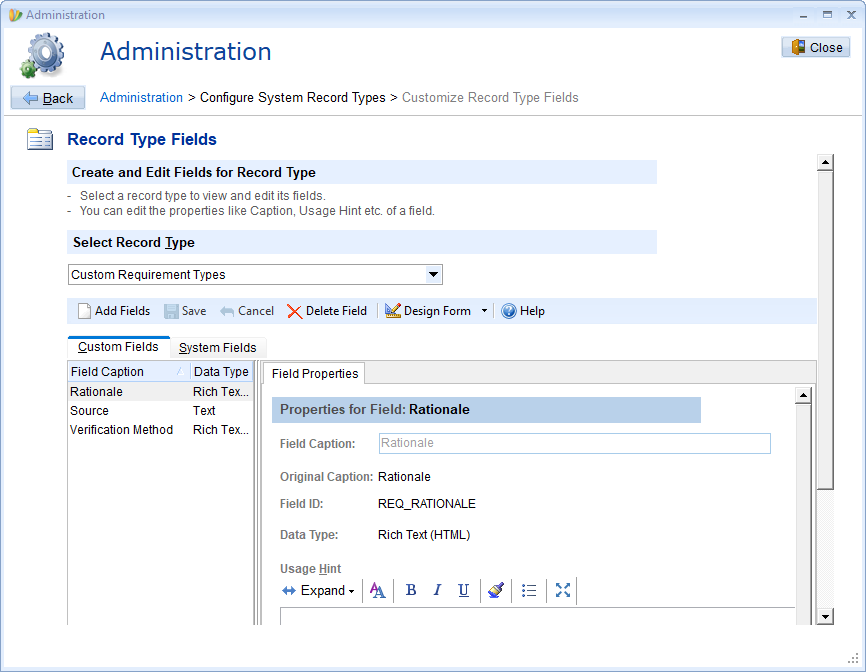

Record Type Fields editor opens in the TopTeam Desktop App.

$C:\Users\admin\AppData\Local\Temp\SNAGHTML37d035eb.PNG$

This editor allows you to add available fields to a record type.

To add new fields to a record type, you must create new fields; from this editor, you must navigate to the interface that allows you to create custom fields (see steps below).

Alternatively, you can open the ‘Record Type Fields’ editor from the Desktop App

Step 1. Open the Administration area

Step 2. Click Customize Record Type Fields

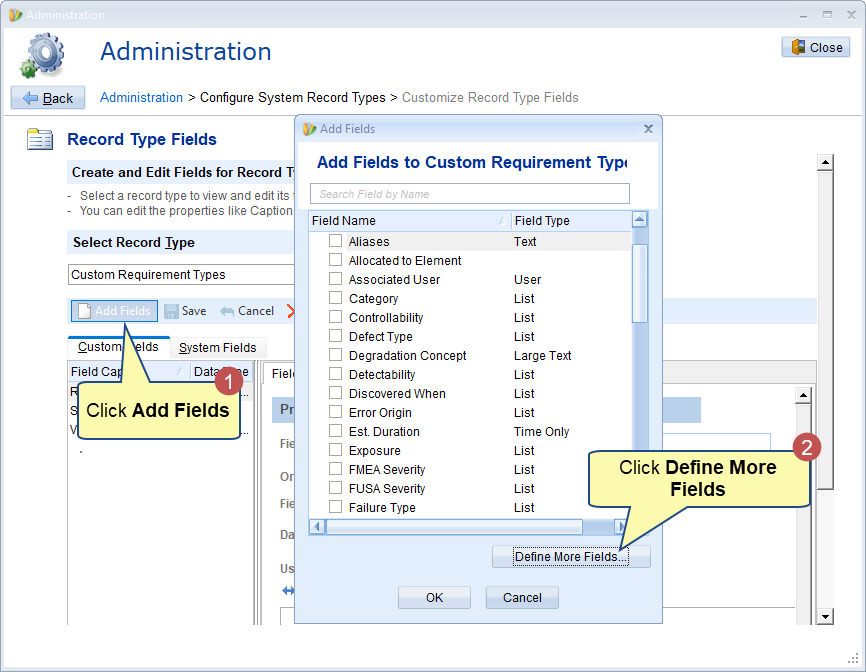

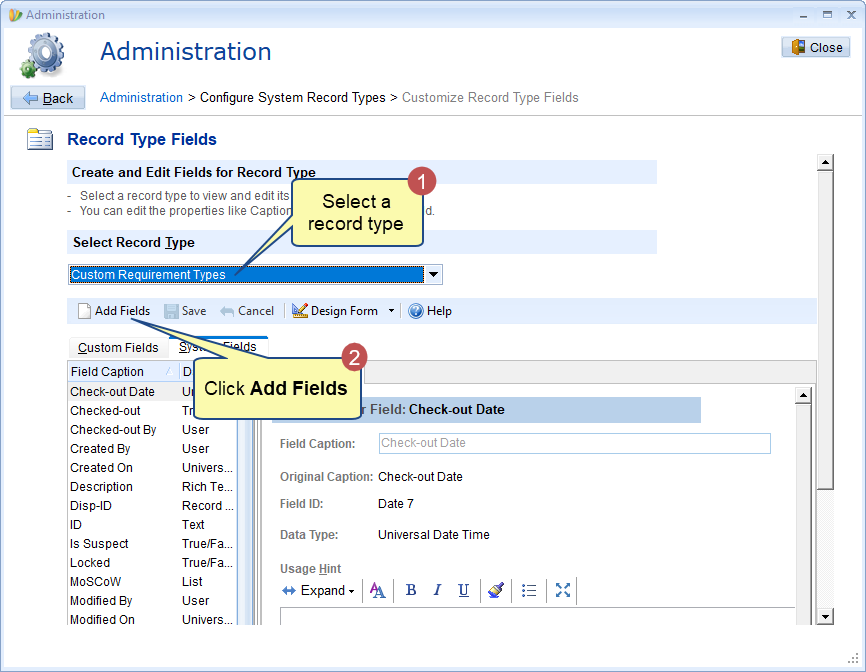

Step 3. Click Add Fields and then Define More Fields

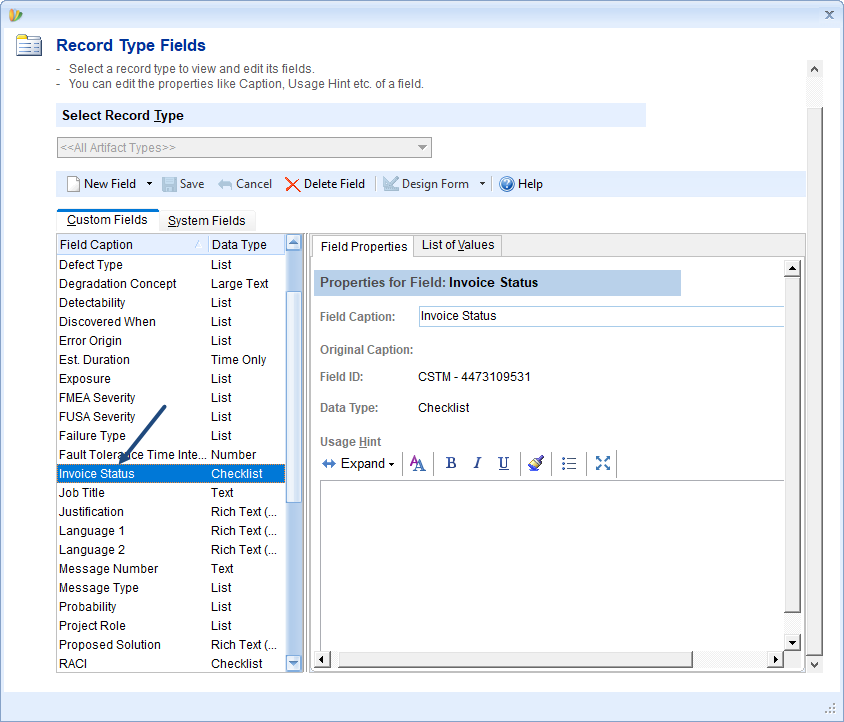

An editor opens to create new fields

NOTE

The editor allows you to edit various fields. However, you cannot modify System Fields.

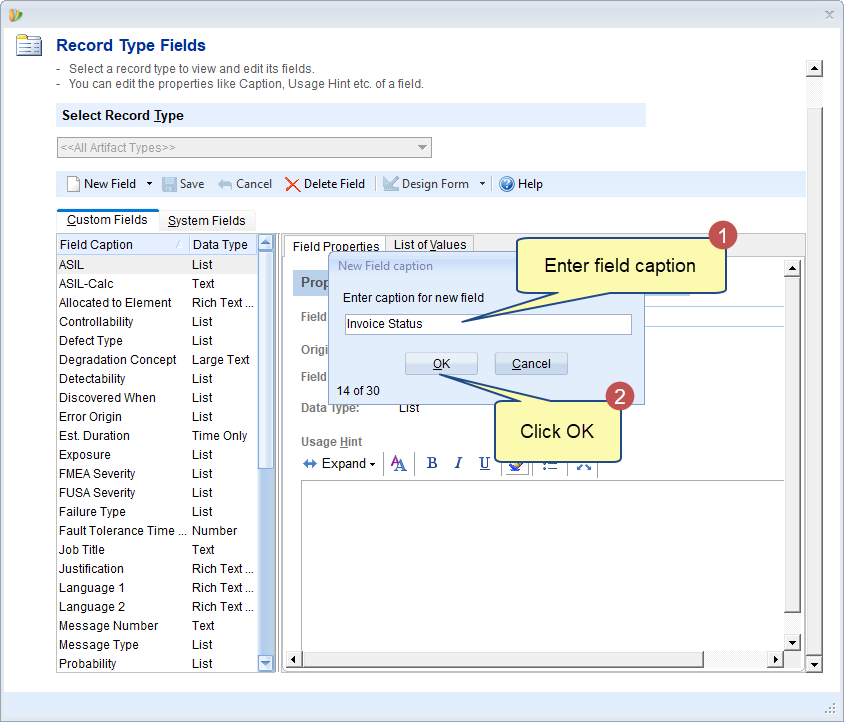

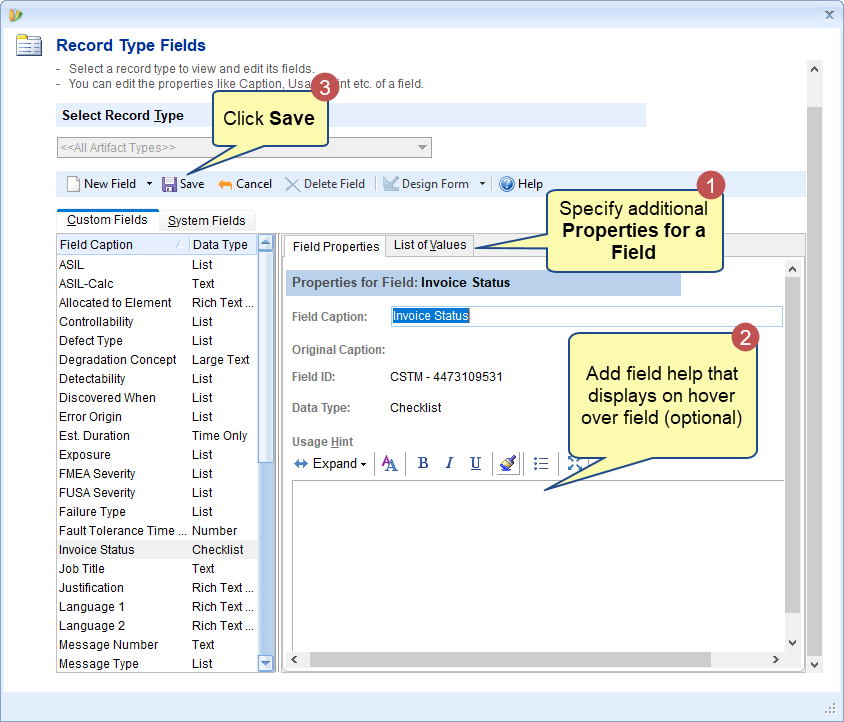

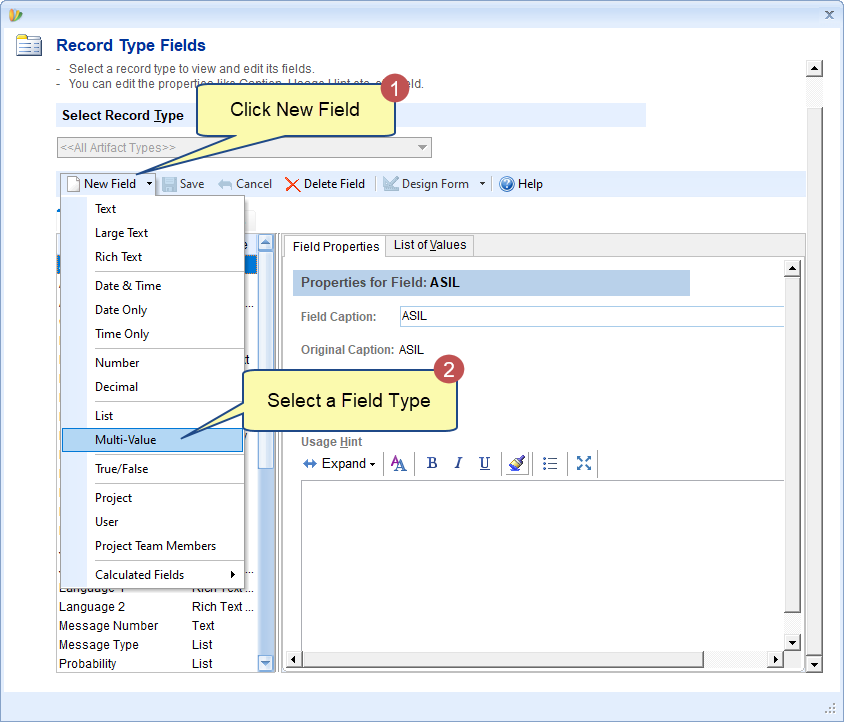

Step 4. Click New Fields to add a new custom field

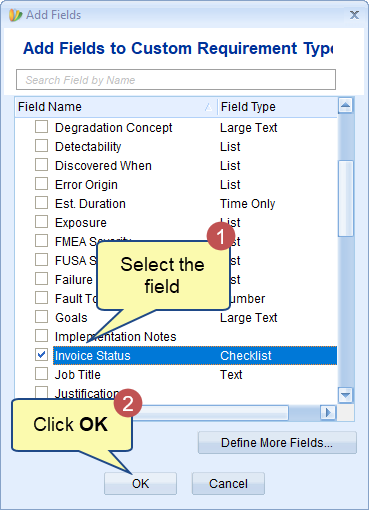

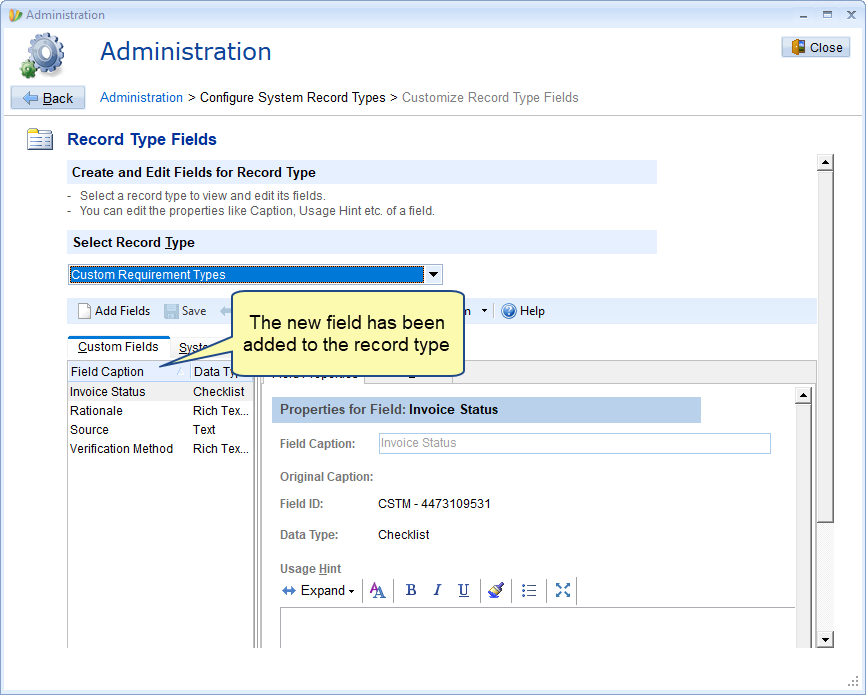

New Fields are created for all record types, i.e., Repository Artifacts. Once created, you can add to other record types using Add Fields. The Add Fields window displays the list of defined fields and System Fields.
